Product Description
- Item #:
- EPC-SID18-178TG-PP
- Barcode #:
- 850019827262

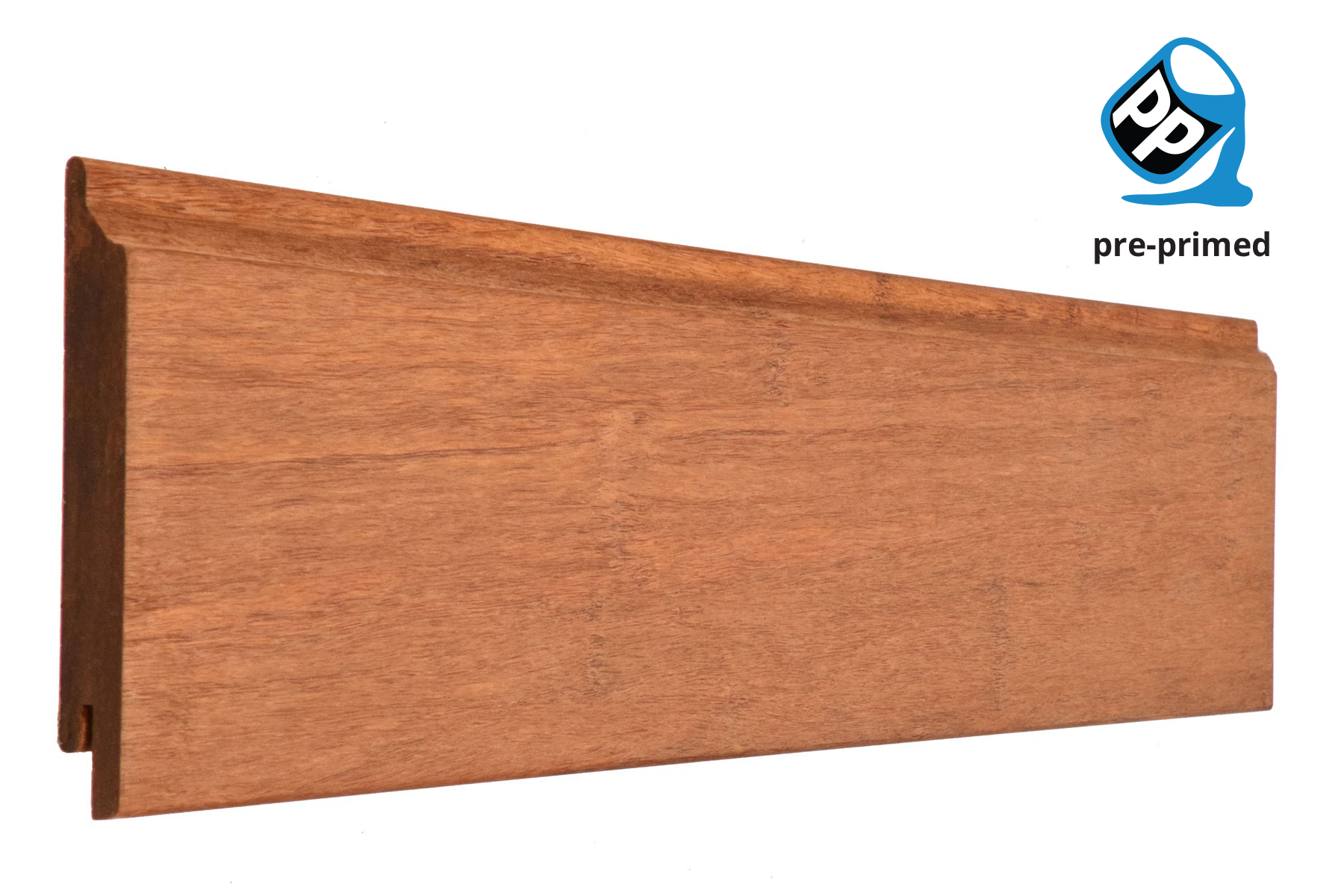

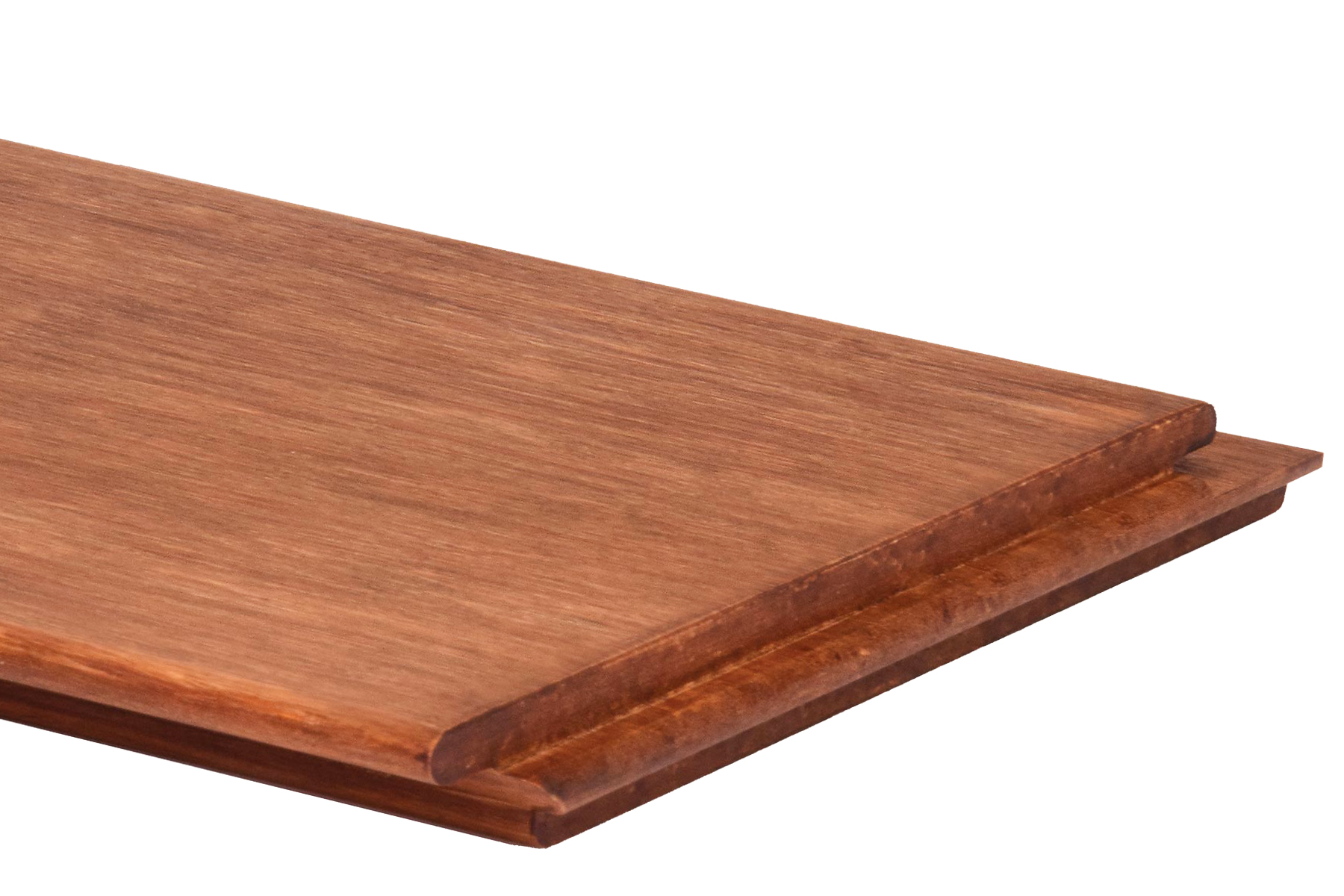

Product Description: Epic Cognac 1x8 (resize to 1x7 net) RainClad Siding Shiplap T&G End-Match Pre-primed dassoXTR Fused Bamboo
- Cognac
- 3/4-"
- 7" net
- 6.615"
- Fascia 6-5/8" or 6.615" (168mm) include 1/4" Reveal (6.35mm)
- 6.0'
- 18.00
- Hung on clips which are mounted on-panel or to studs/batten. Use marine-grade stainless steel fasteners designed for fastening to the panel/batten (wood or metal screws to wood or metal).
- Pre-Oiled at factory, all sides
Product Info
- PRODUCT DESCRIPTION Epic Cognac 1x8 (resize to 1x7 net) RainClad Siding Shiplap T&G End-Match Pre-primed dassoXTR Fused Bamboo
- GRADE Exterior Bamboo Grade
- FACE/BOTTOM MILLING One side smooth face, 8mm kerf on upper side

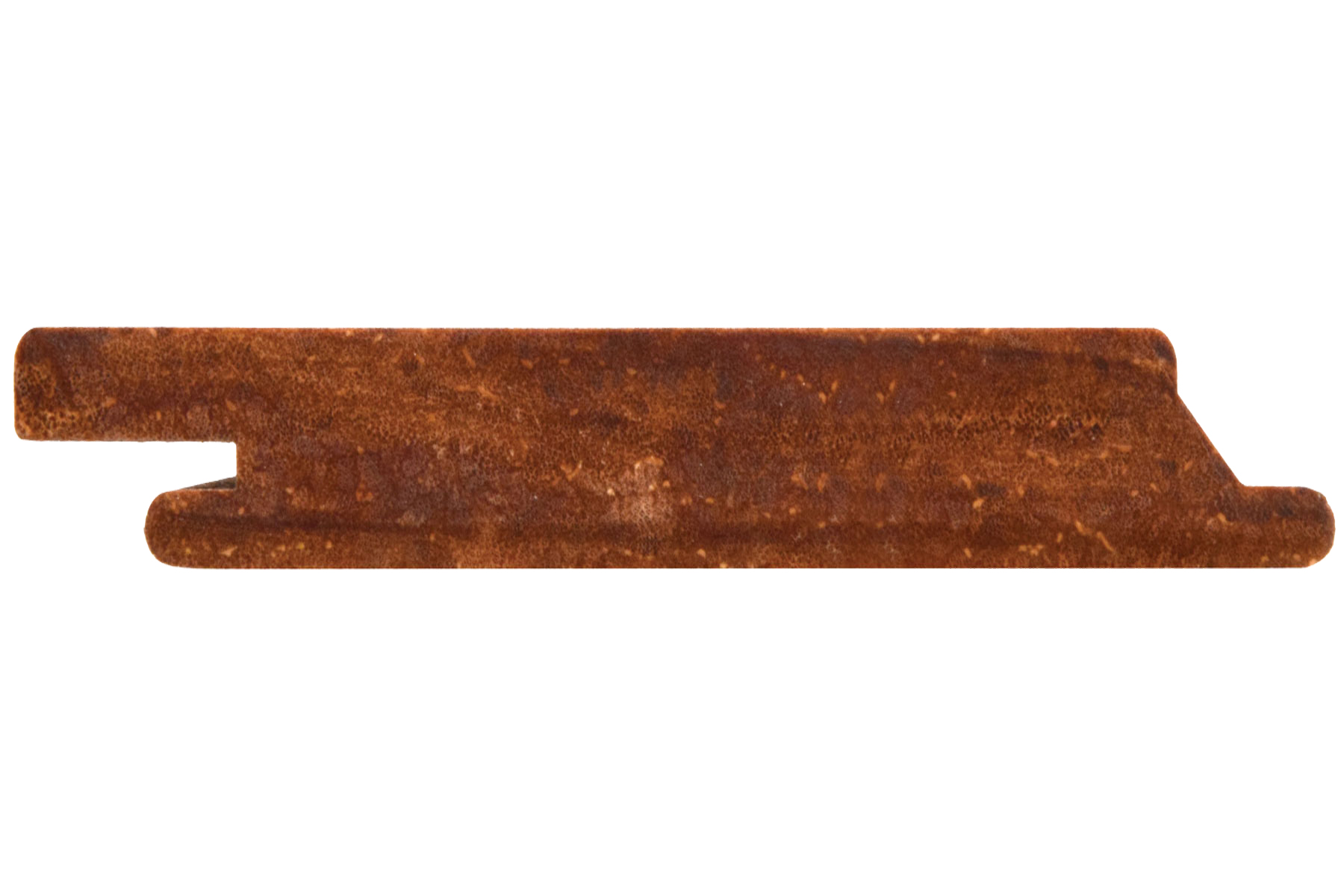

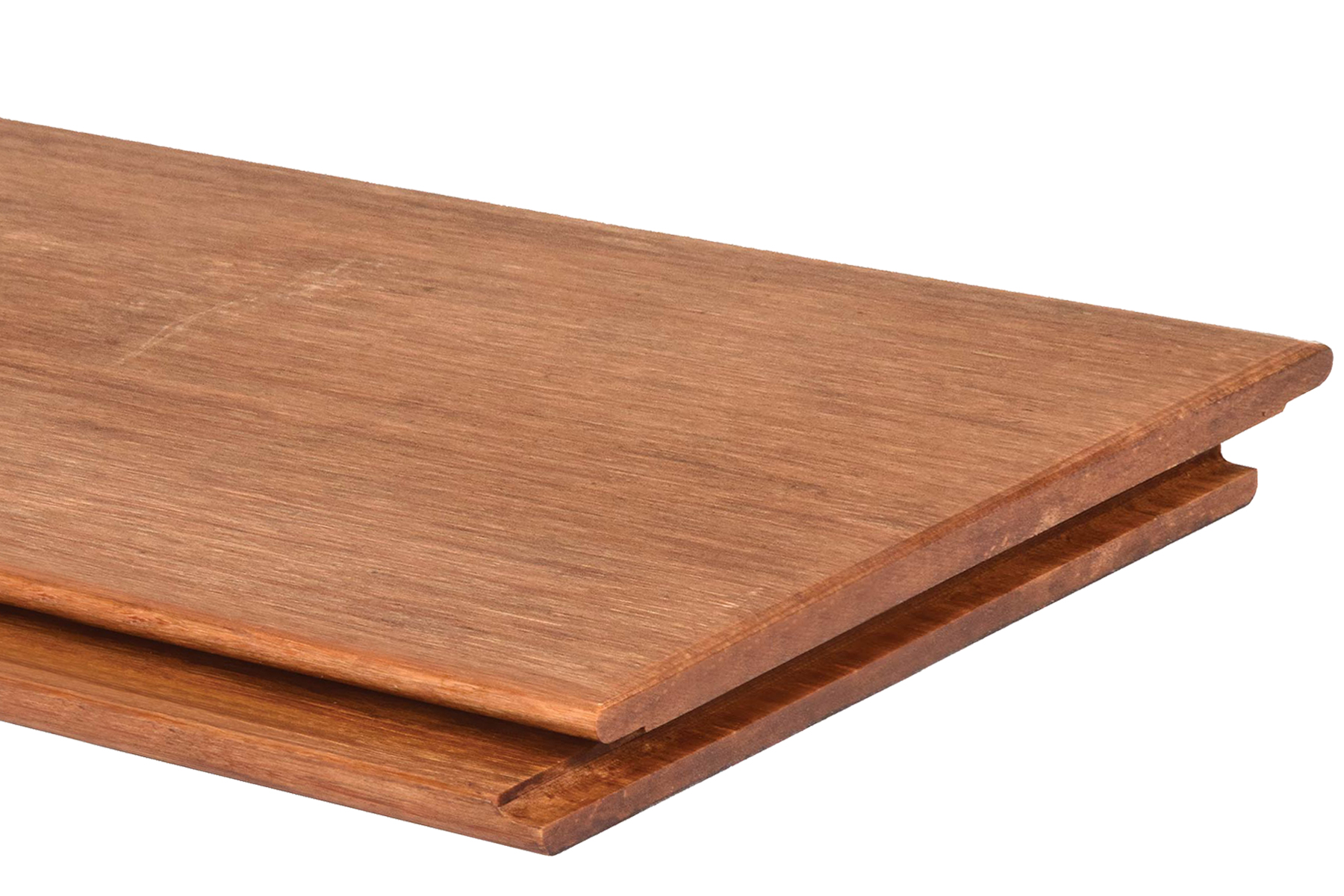

- BOARD EDGES PROFILE Shiplap on long side with 3mm rounded side, ends micro-beveled 0.5mm
- PRE-OILED Yes, WOCA Natural Oil - Teak Color
- FINISHES Pre-Oiled at factory, all sides
- CROSS CUT SEALER AVAILABLE Yes, Anchor Seal2
- OVERLAP BY 3/8" or 0.3937" (10mm)
- REVEAL SIZE 1/4" or 0.25" (6.35mm)
- FASTENING CLIPS & SCREWS AVAILABLE Yes, complete designed installation
- PLUGS AVAILABLE Yes, unfinished

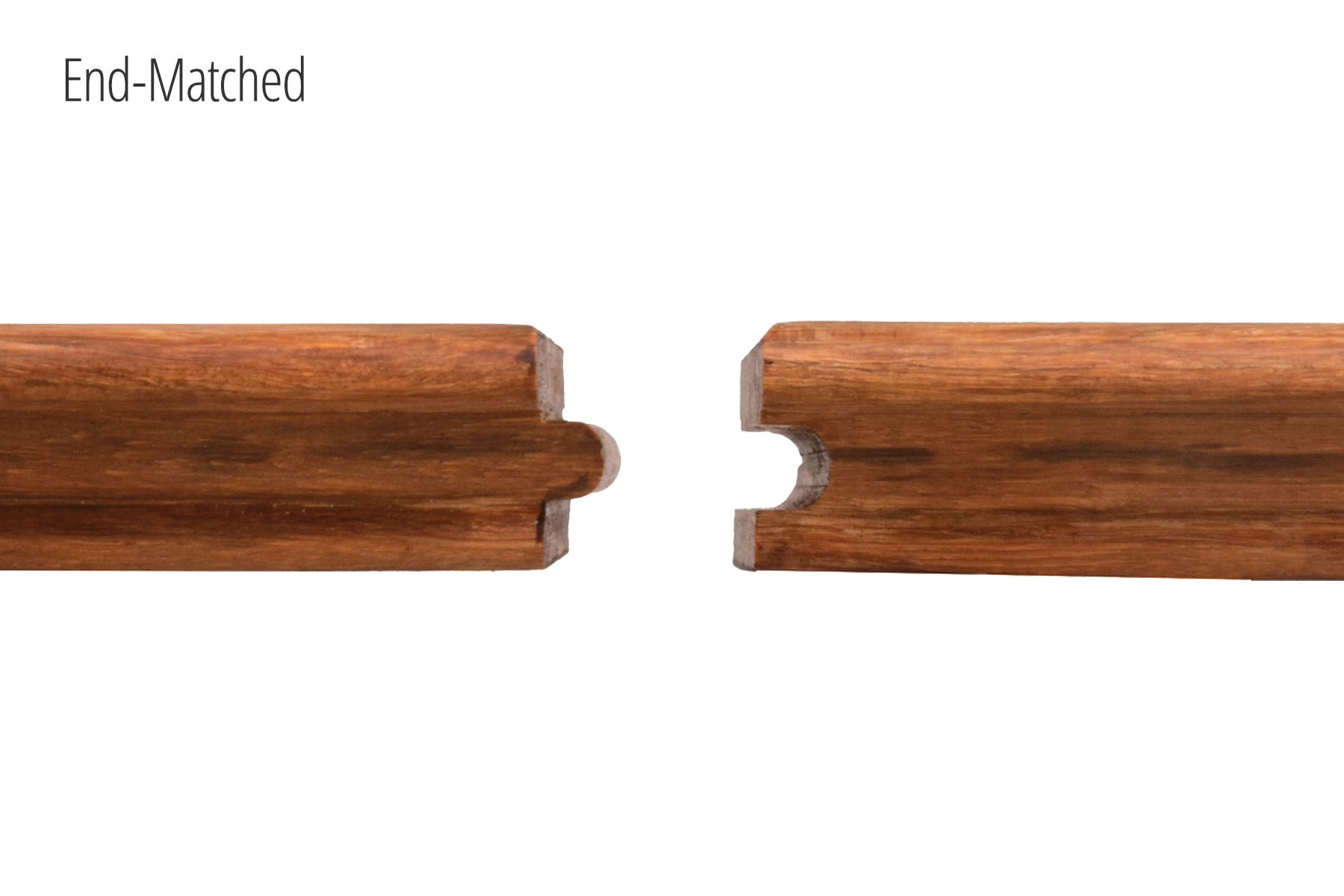

- JOINERY End-Matched T&G , Long Side Tongue and Groove, Screw & Plugs
- FOR INDOOR USE? Yes, zero VOC, indoor safe, material is food grade safe.
Composition
- CONSTRUCTION Thermalized Strand
- PROCESS OR TREATMENT Thermalized and Fused
- BINDING PROCESS Fusion Press
- BINDING AGENT Phenolic Resin (same resin type in bowling ball)
- MARKET NAME Bamboo Strand
Dimensions
- THICKNESS (DECIMAL) 0.71 inches
- WIDTH (DECIMAL) 7.01 inches
- LENGTH (DECIMAL) 72.00 inches
- THICKNESS (NOMINAL) 1
- WIDTH (NOMINAL) 8"
- THICKNESS (FRACTION) 3/4-"
- WIDTH (FRACTION) 7" net
- LENGTH/LENGTH RANGE 6.0'
- FACE COVERAGE (INCH) 6.615"
- FASCIA AND REVEAL Fascia 6-5/8" or 6.615" (168mm) include 1/4" Reveal (6.35mm)
- THICKNESS (MM) 18 mm
- WIDTH (MM) 178 mm
- LENGTH (MM) 1,829 mm
- FACE COVERAGE (MM) 168 mm
Packaging
- BUNDLE DIMENSION (INCH) 2.2" x 7.1" x 73"
- PIECES PER BUNDLE 3 (18 Lin.Ft. long)
- BUNDLES PER PALLET 60 (6 row x 10 layer)
- SQ.FT. PER BUNDLE 10.51
- SQ.FT. PER PALLET 631.20
- SQ.FT. COVERAGE/BDL 9.922
- LIN.FT. PER PIECE 6
- LIN.FT. PER BUNDLE 18
- LIN.FT. PER PALLET 1080
- IB PER LIN.FT. 2.72
- IB PER BUNDLE 48.96
- IB PER PALLET 2937.6
- IB PER PALLET SHOES 55
- TOTAL WEIGHT (IB) 2992.60
- PALLET+SHOES DIMENSION (INCH)) H28" x W44" x L73"
- A 20 FCL CONTAINER CAN LOAD 15 to 18 pallets depending on road-loading limits of each state
- BUNDLE DIMENSION (MM) 56mm x 180mm x 1840mm
- PIECES PER BUNDLE (M) 3 (5.487 Meter long)
- BUNDLES PER PALLET (M) 60 (6 row x 10 layer)
- M2 PER BUNDLE 0.977
- M2 PER PALLET 58.62 Sq.Meter per Pallet
- M2 COVERAGE/BDL 1.03
- METER PER PIECE 1.829
- METER PER BUNDLE 5.487
- METER PER PALLET 329.22
- KG PER METER 4.04
- KG PER BUNDLE 22.208
- KG PER PALLET 1332.48
- KG PER PALLET SHOES 25
- TOTAL WEIGHT (KG) 1357.48
- PALLET±SHOES DIMENSION (MM) H710mm x W1096mm x L1840mm
Technical Info
- HARDNESS 3,820 lbf Janka rating
- FIRE RATING Class A, WUI Approved
- JOIST SPAN (ON CENTER) 12", 16" or 24"
- RECOMMENDED SITE FINISH Touch up only, do not recoat before exposed 6 month to ambient.

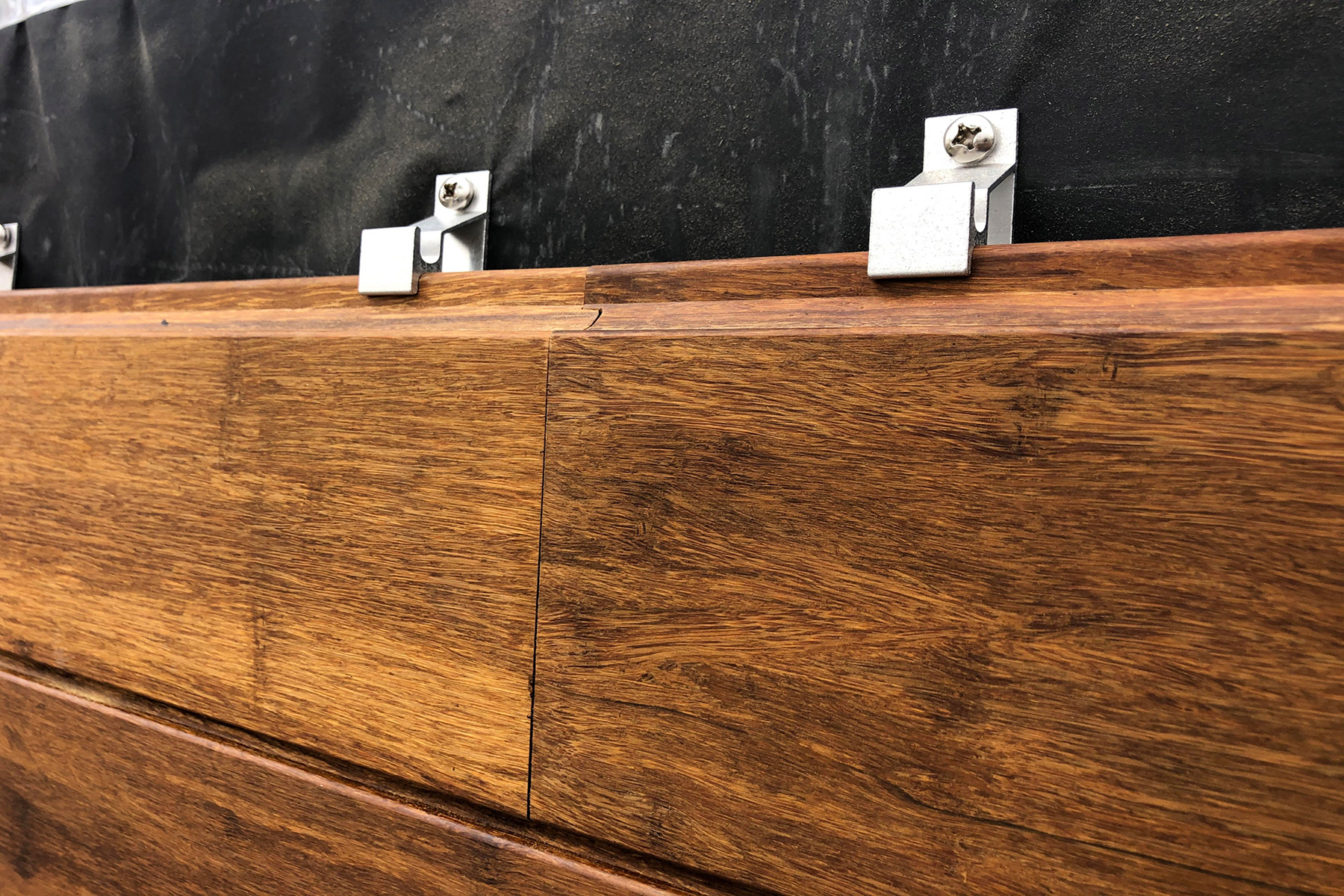

- INSTALLATION Hung on clips which are mounted on-panel or to studs/batten. Use marine-grade stainless steel fasteners designed for fastening to the panel/batten (wood or metal screws to wood or metal).
Eco Properties
- FORMALYDHYDE EMMISSION RATING E0 / F****
- FSC CERTIFIED AVAILABILITY Yes - as Special Order
Installation / Warranty
- CORROSION INFORMATION For applications exposed to salt air, near large bodies of water, swimming pools or other areas where corrosion is more likely to occur, always use Grade 316 stainless steel screws.
- WARRANTY RESIDENTIAL 30 Years
- WARRANTY COMMERCIAL 10 Years
