Product Description
- Item #:
- XTR-DK20-G2-PP
- Barcode #:
- 850019827293

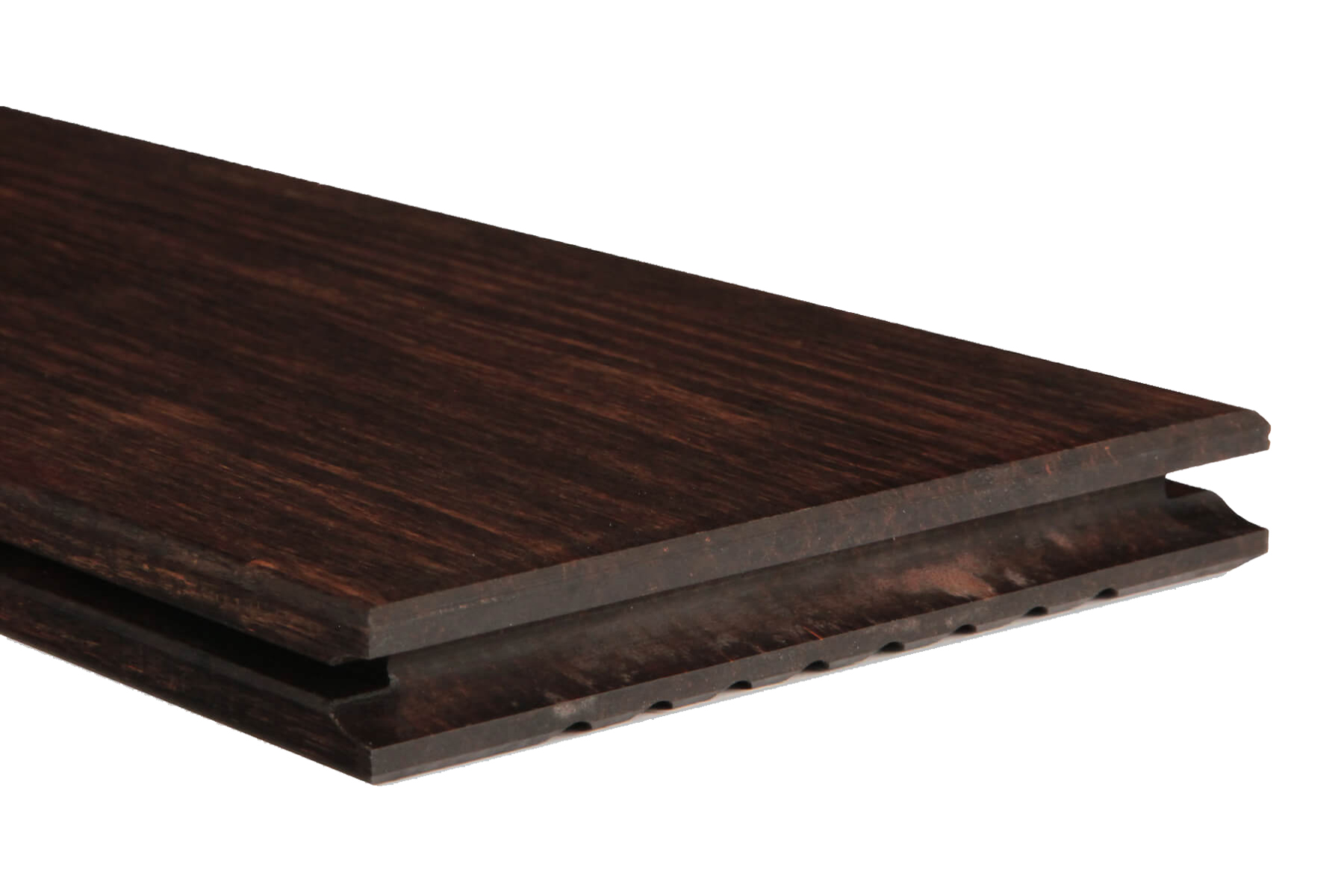

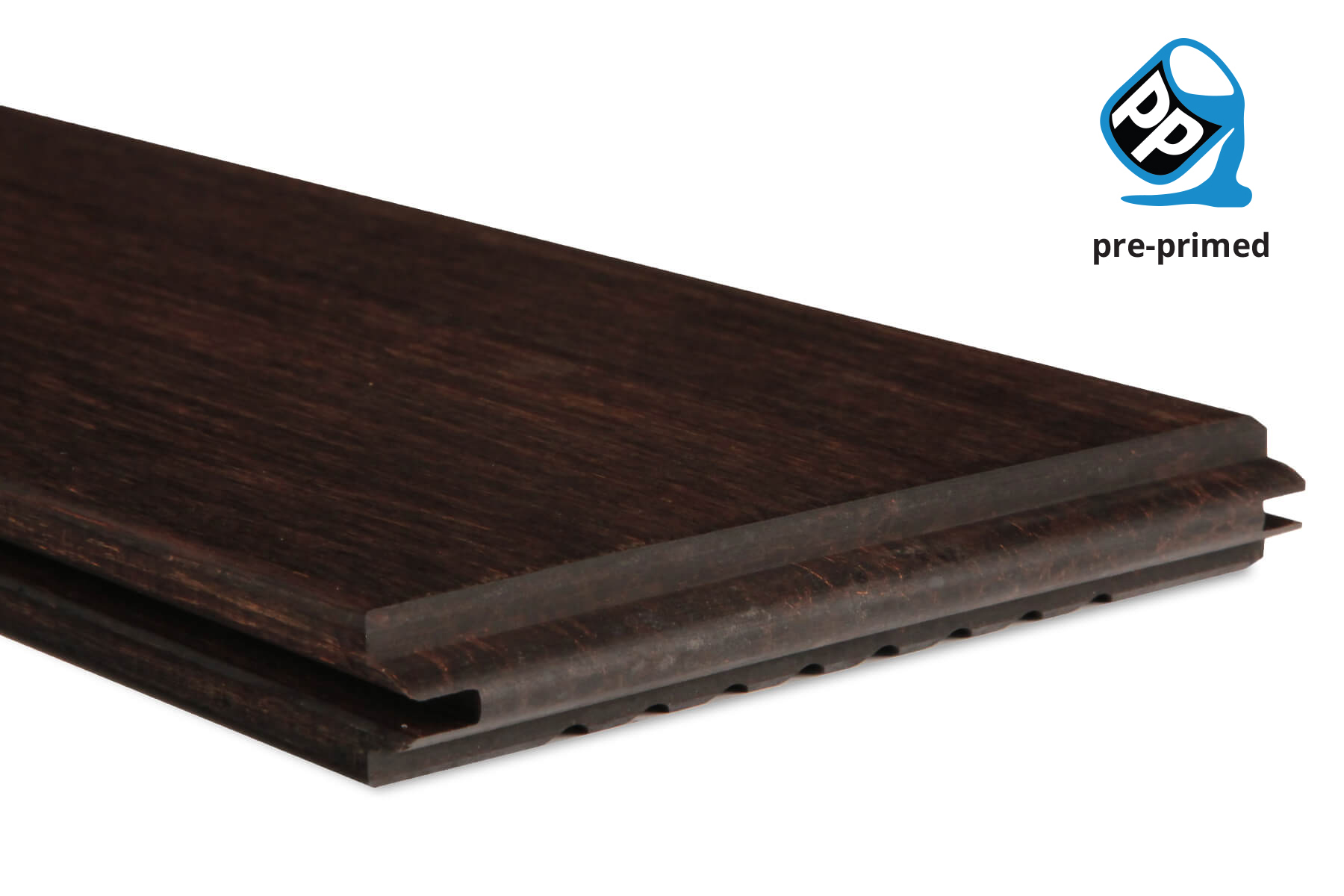

- Classic Espresso 1x6 Decking TWO side grooves T&G End-Match Pre-Oiled Reversible dassoXTR Fused Bamboo, W.U.I. Compliant
- Classic Espresso
- 3/4+" X 5-3/8" X 6'
- Thermalized Strand

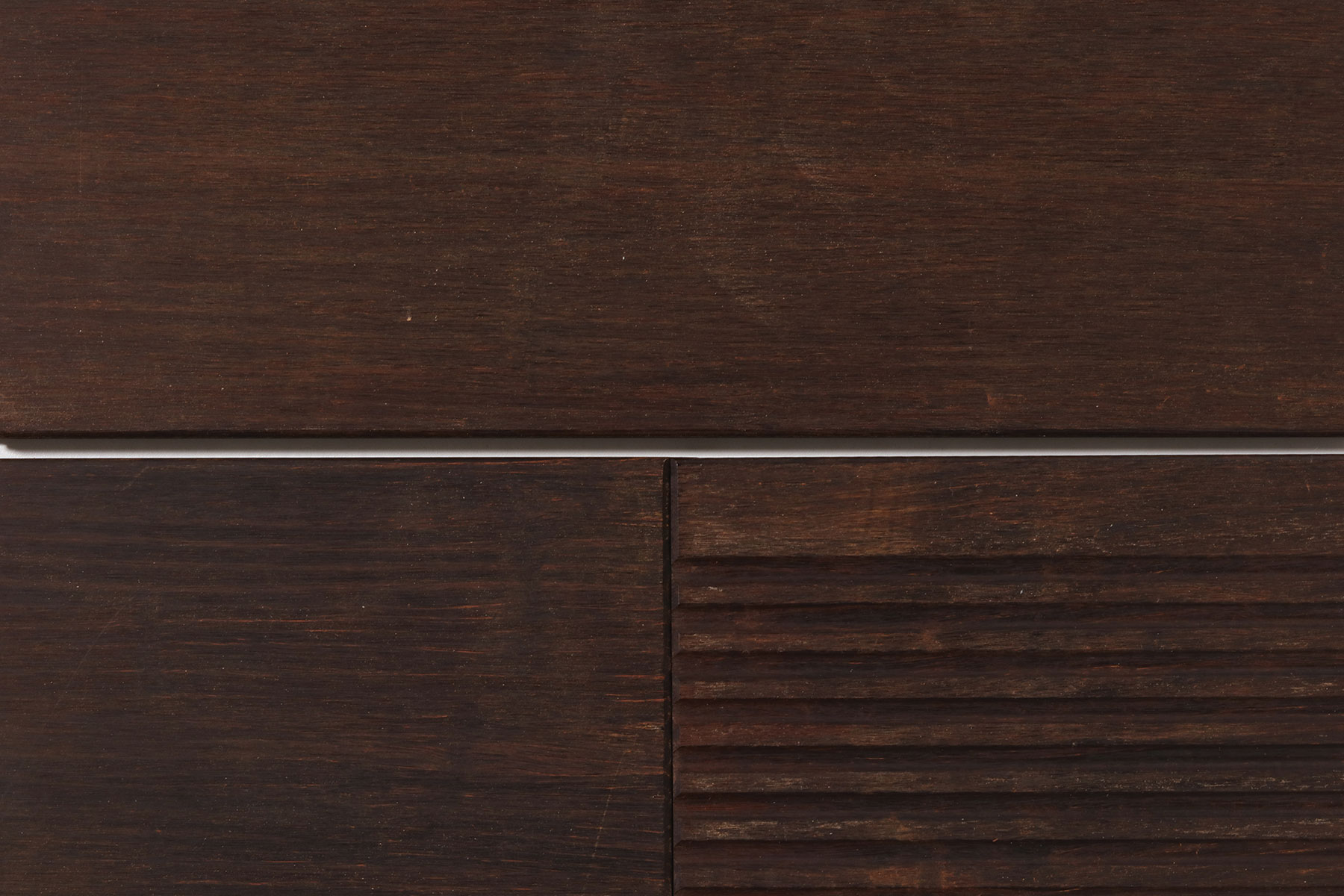

- One Side Smooth, Another Side Reeded Face, 3mm Ridges/Valleys
- Lin. ft. Per Bundle: 18.00
- Lin. ft. Per Pallet: 1296.00
- 8.09
- 8.327
- Yes - WOCA Natural Oil - Walnut Color
- Hidden fastener and plug on countersink face screw
- Pre-Oiled at factory, all sides
Product Info
- PRODUCT DESCRIPTION Classic Espresso 1x6 Decking TWO side grooves T&G End-Match Pre-Oiled Reversible dassoXTR Fused Bamboo, W.U.I. Compliant
- GRADE Fused Bamboo, Exterior Bamboo Grade

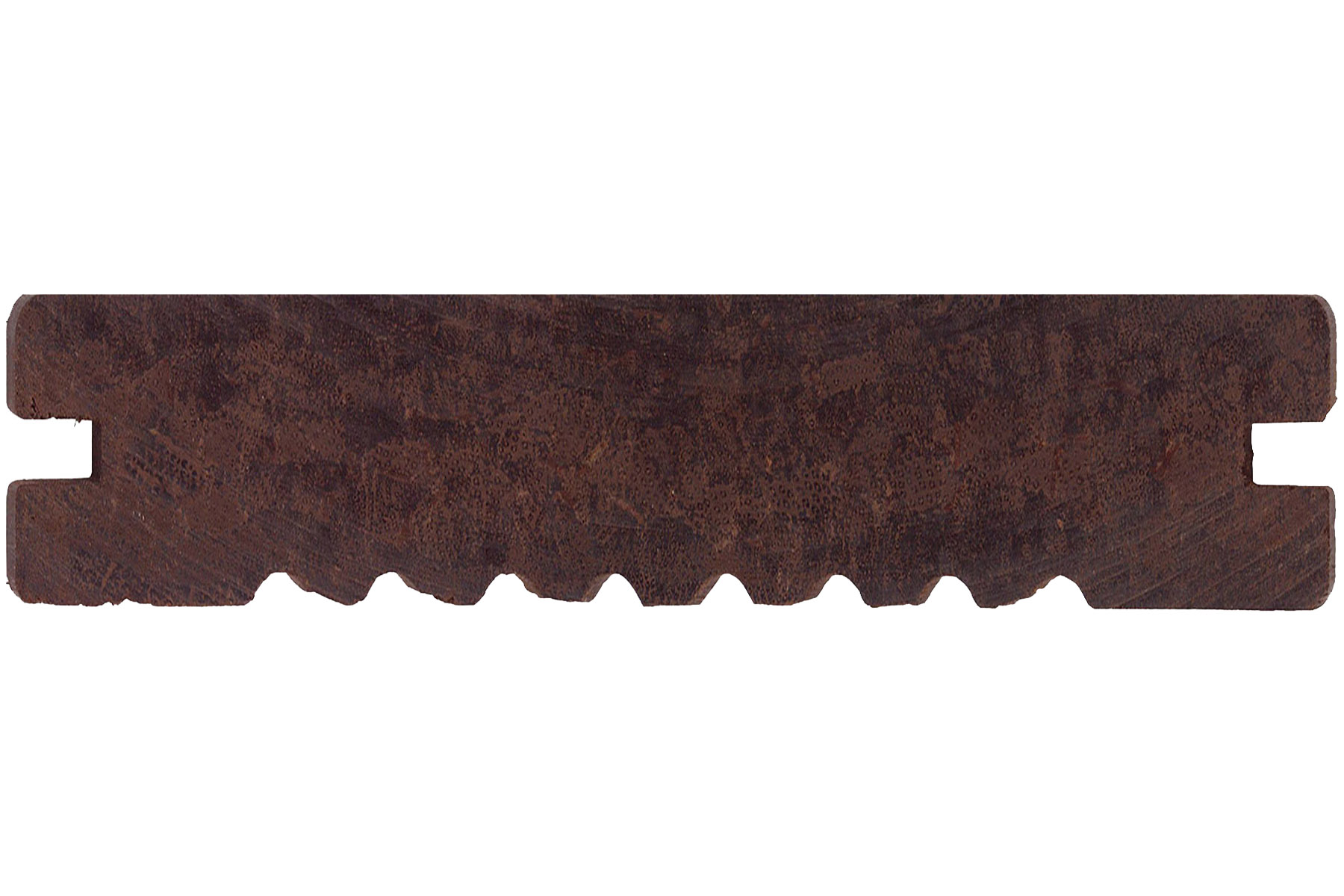

- FACE/BOTTOM MILLING One Side Smooth, Another Side Reeded Face, 3mm Ridges/Valleys
- BOARD EDGES PROFILE Sides rounded 3mm, ends beveled 2mm
- PRE-OILED Yes - WOCA Natural Oil - Walnut Color
- FINISHES Pre-Oiled at factory, all sides
- CROSS CUT SEALED Yes, Anchor Seal2

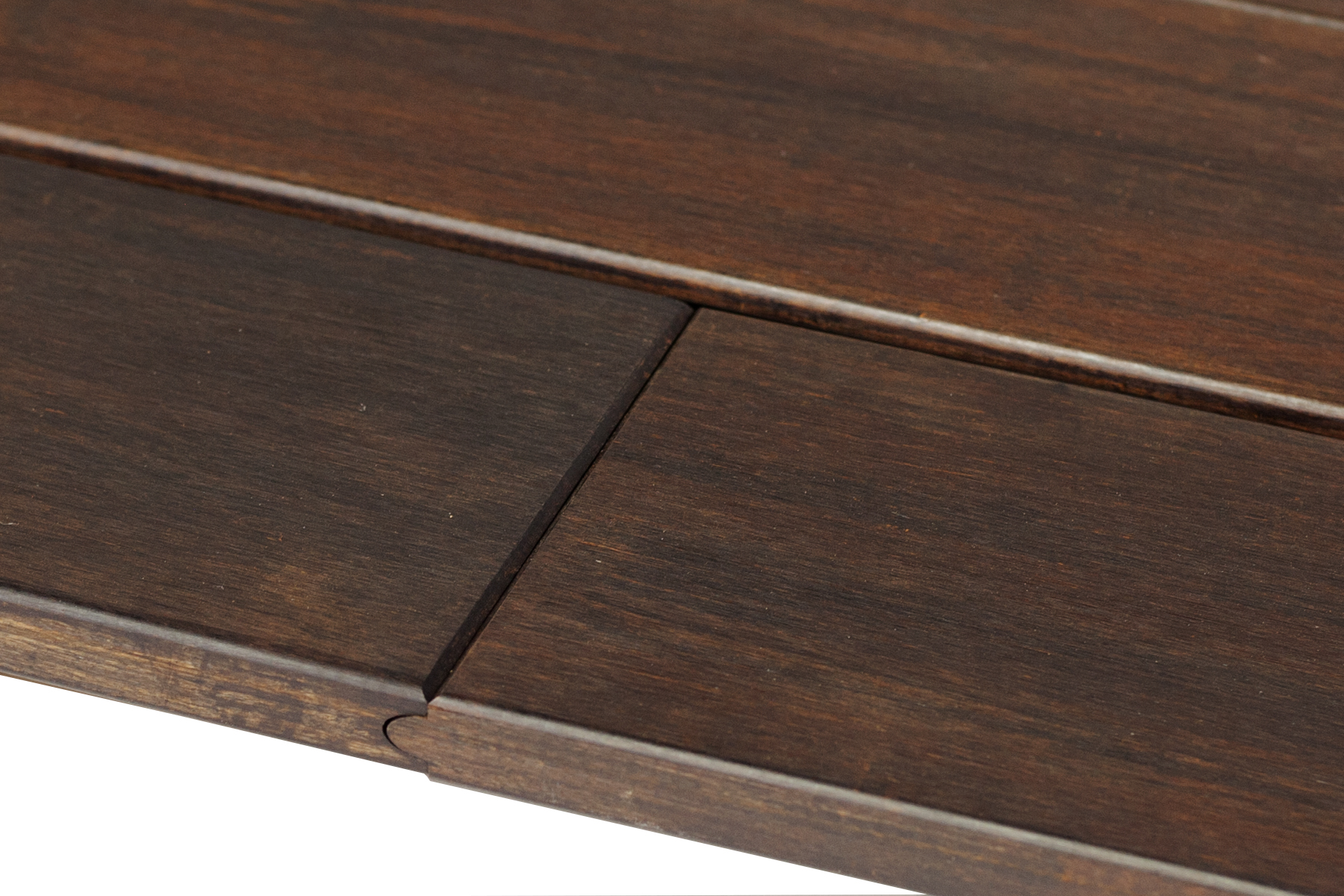

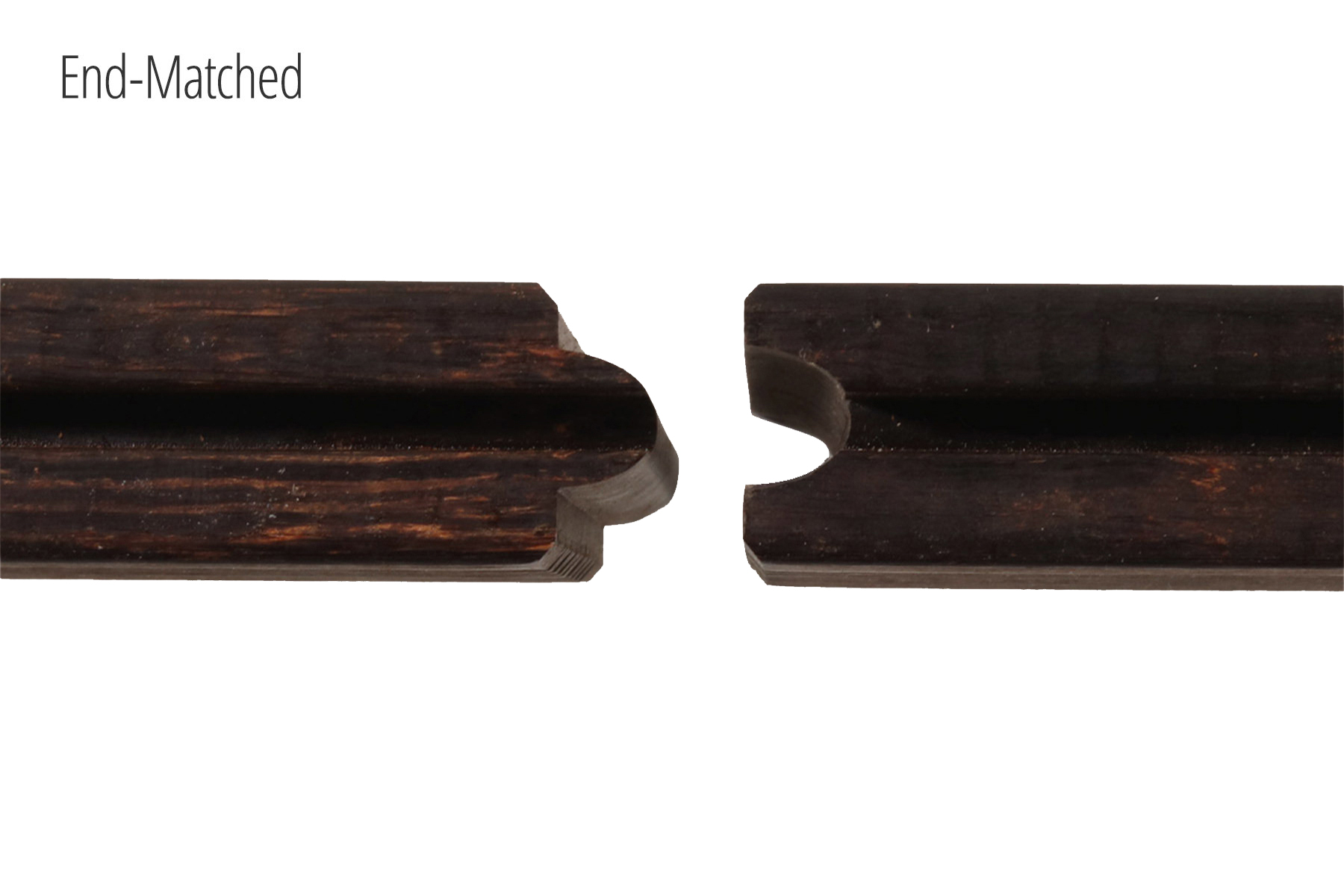

- JOINERY End-Matched T&G, Metal Fastener, Screw & Plugs
- GAP SIZE 3/16" or 0.1875 (4.762mm)
- PLUGS AVAILABLE Yes, unfinished
- FASTENING CLIPS & SCREWS AVAILABLE Yes, complete designed installation
- FOR INDOOR USE? Yes, zero VOC, indoor safe, material is food grade safe.
Composition
- CONSTRUCTION Thermalized Strand
- PROCESS OR TREATMENT Thermalized and Fused
- BINDING PROCESS Fusion Press
- BINDING AGENT Phenolic Resin (same resin type in bowling ball)
- MARKET NAME Bamboo Strand
Dimensions
- THICKNESS (DECIMAL) 0.79 inches
- WIDTH (DECIMAL) 5.39 inches
- LENGTH (DECIMAL) 72 inches
- THICKNESS (NOMINAL) 1
- WIDTH (NOMINAL) 6
- THICKNESS (FRACTION) 3/4+"
- WIDTH (FRACTION) 5-3/8"
- LENGTH/LENGTH RANGE 6'
- WIDTH IN FT (INCLUDE GAP) 0.463
- THICKNESS (MM) 20 mm
- WIDTH (MM) 137 mm
- LENGTH (MM) 1,829 mm
- WIDTH IN METER (INCLUDE GAP) 0.141
- NUMERIC MM WIDTH FOR CALCULATIONS 137
Packaging

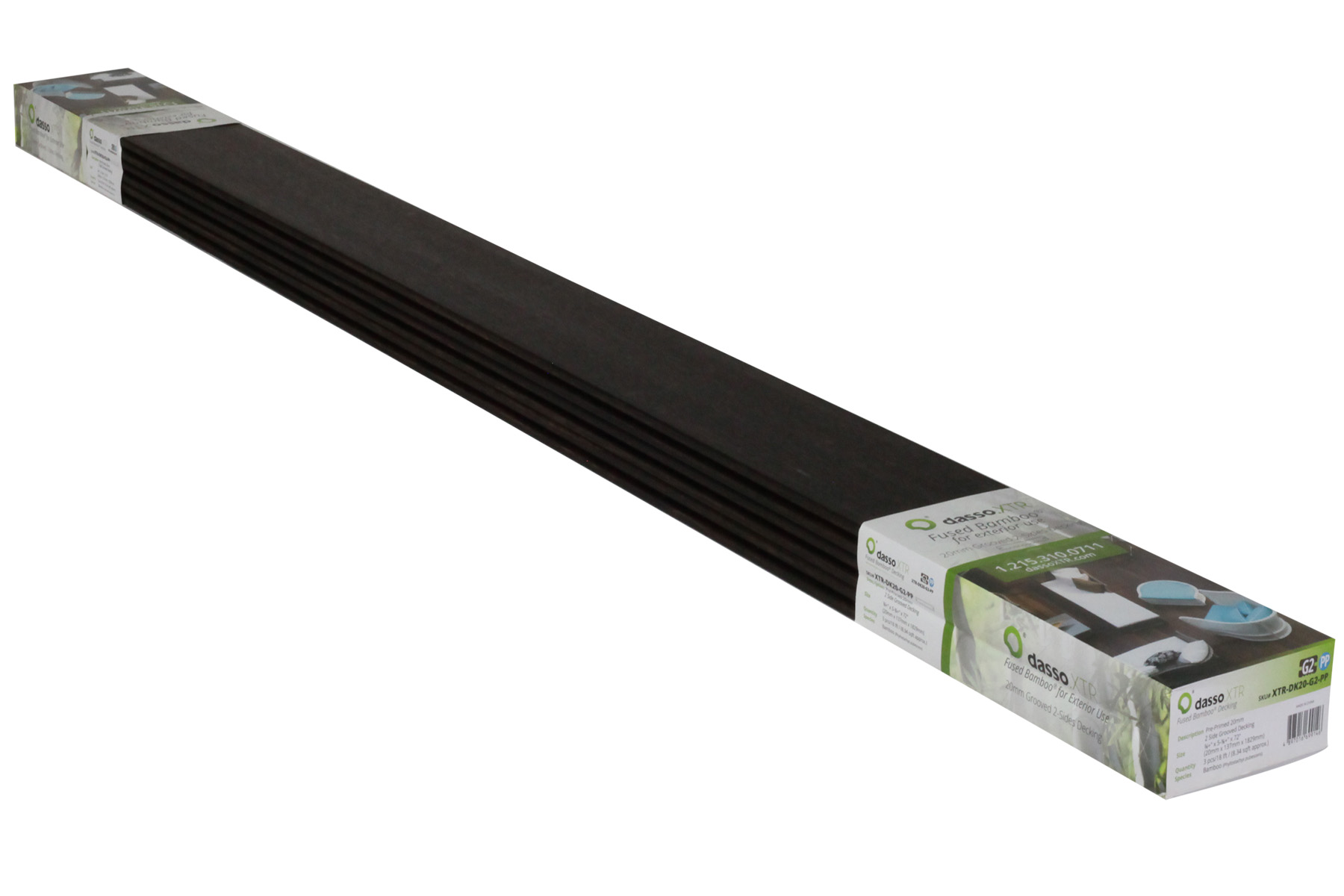

- BUNDLE DIMENSION (INCH) 2.5" x 5-1/2" x 73"
- PIECES PER BUNDLE (N) 3 (18 Lin.ft.)
- BUNDLES PER PALLET 72 (8 row x 9 layer)
- SQ.FT. PER BUNDLE 8.09
- SQ.FT. PER PALLET 583.20
- SQ.FT. COVERAGE/BDL 8.327
- LIN.FT. PER PIECE 6
- LIN.FT. PER BUNDLE 18
- LIN.FT. PER PALLET 1296
- IB PER LIN.FT. 2.20
- IB PER BUNDLE 39.6
- IB PER PALLET 2851.2
- IB PER PALLET SHOES 55
- TOTAL WEIGHT (IB) 2,890.80
- PALLET+SHOES DIMENSION (INCH) H28" x W44" x L73"
- A 20 FCL CONTAINER CAN LOAD 15 to 18 pallets depending on road-loading limits of each state
- BUNDLE DIMENSION (MM) 64mm x 140mm x 1840mm
- PIECES PER BUNDLE (M) 3 (5.487 Meter long)
- BUNDLES PER PALLET (M) 72 (8 row x 9 layer)
- M2 PER BUNDLE 0.752
- M2 PER PALLET 54.12
- M2 COVERAGE/BDL 0.774
- METER PER PIECE 1.829
- METER PER BUNDLE 5.487
- METER PER PALLET 395.06
- KG PER METER 3.274
- KG PER BUNDLE 17.962
- KG PER PALLET 1293.29
- KG PER PALLET SHOES 25
- TOTAL WEIGHT (KG) 1,311.29
- PALLET+SHOES DIMENSION (MM) H705mm x W1096mm x L1840mm
Technical Info
- HARDNESS 3,820 lbf Janka rating

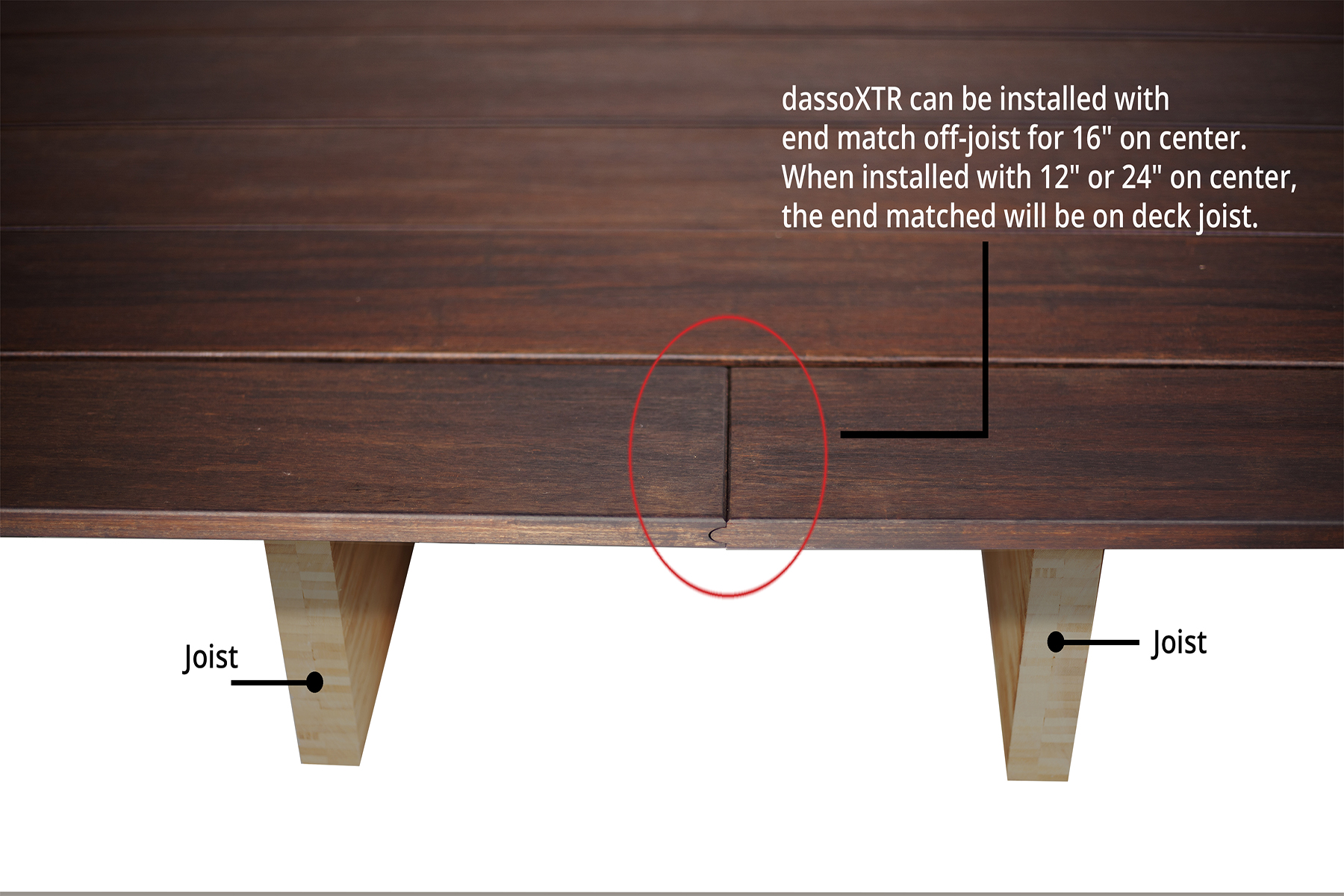

- JOIST SPAN (ON CENTER) 12", 16" or 24" on-center
- JOIST SPAN MAXIMUM 24" (the product can actually span greater than 24", but building codes limit joist span)
- GAP SIZE DETERMINATION Gap size is determined by the type of fastener chosen. Panda Claw give a 3/16" gap install with 3/16" spacer and deck wrench.
- FIRE RATING Class A
- RECOMMENDED SITE FINISH Touch up only, do not recoat before exposed 6 month to ambient.
Eco Properties
- FORMALDEHYDE EMMISSION FROM BINDERS E0 / F****
- FSC CERTIFIED AVAILABILITY Yes - as Special Order
Installation / Warranty
- TYPE(S) OF INSTALLATION Hidden fastener and plug on countersink face screw
- CORROSION INFORMATION For applications exposed to salt air, near large bodies of water, swimming pools or other areas where corrosion is more likely to occur, always use Grade 316 stainless steel screws.
- WARRANTY RESIDENTIAL 30 Years
- WARRANTY COMMERCIAL 10 Years
